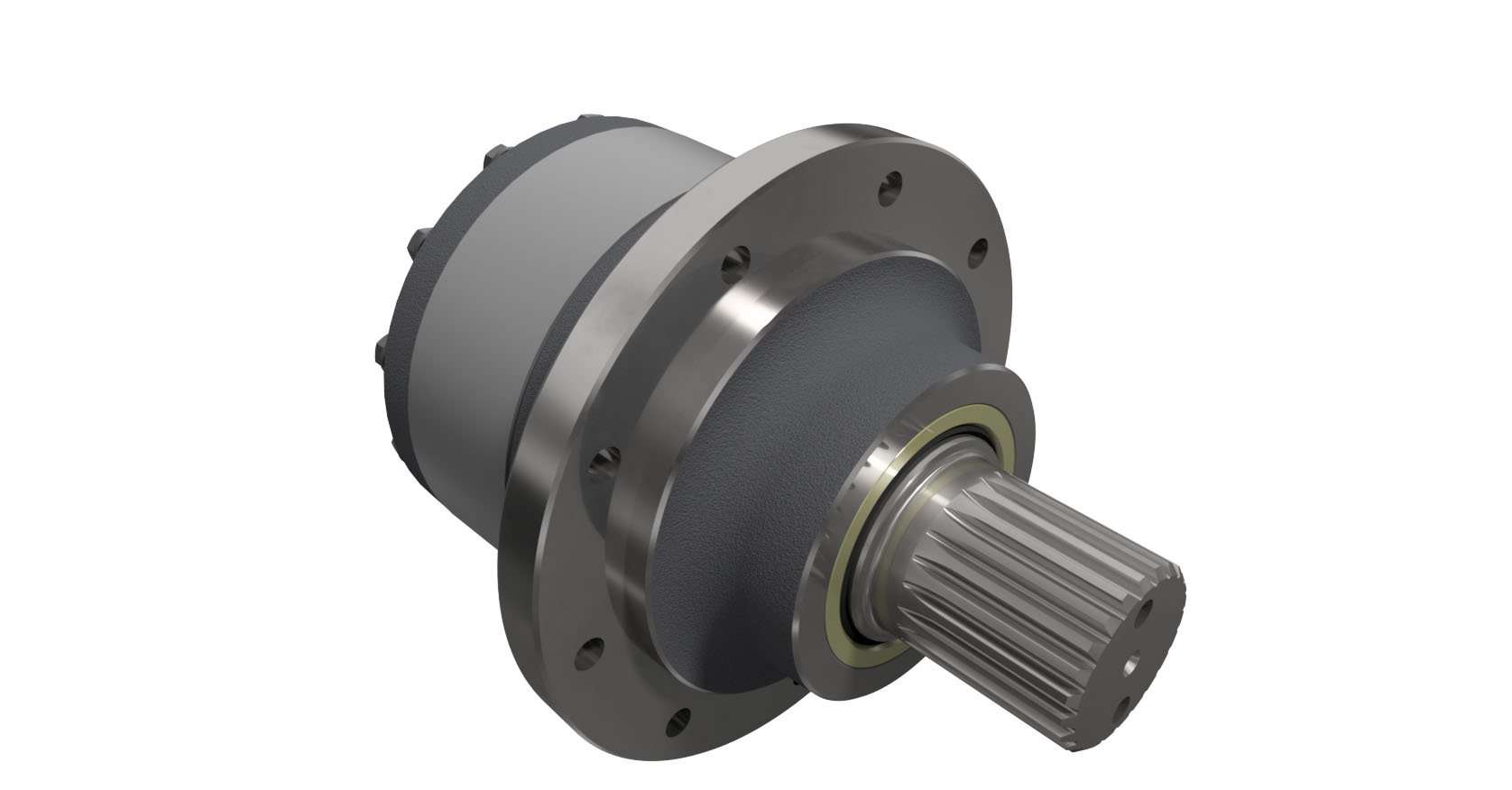

70L SHAFT DRIVE

Output Torque
70,000 In. Lbs.
7,909 Nm

Load-N-Lock Shaft Retention System
Gearbox Mounting – Round Flange, Round Eccentric Flange, Rectangular Flange, Flangeless, or Custom
Output Shaft – 23T 8/16 DP Spline, 3.00″ Dia x 5/8″ Key, 2.00″ Dia x 1/4″ Key, 2.00″ Dia x 1/2″ Key, 2.00″ x 1/2″ Internal Key, 2.00″ Hex Shaft, or Custom
Input Mount SAE “A” (2 & Modified 4 Bolt), SAE “B” (2 Bolt), SAE “C” (2 & 4 Bolt)

Maximum Intermittent Output Torque	70,000 In. Lbs. / 7,909 Nm.
Continuous Output Torque	35,000 In. Lbs. / 3,954 Nm.
Maximum Input Speed	3,000 RPM
Standard Ratios	4, 5, 14, 19, 21, 26, 54, 59, 71, 77, 84
