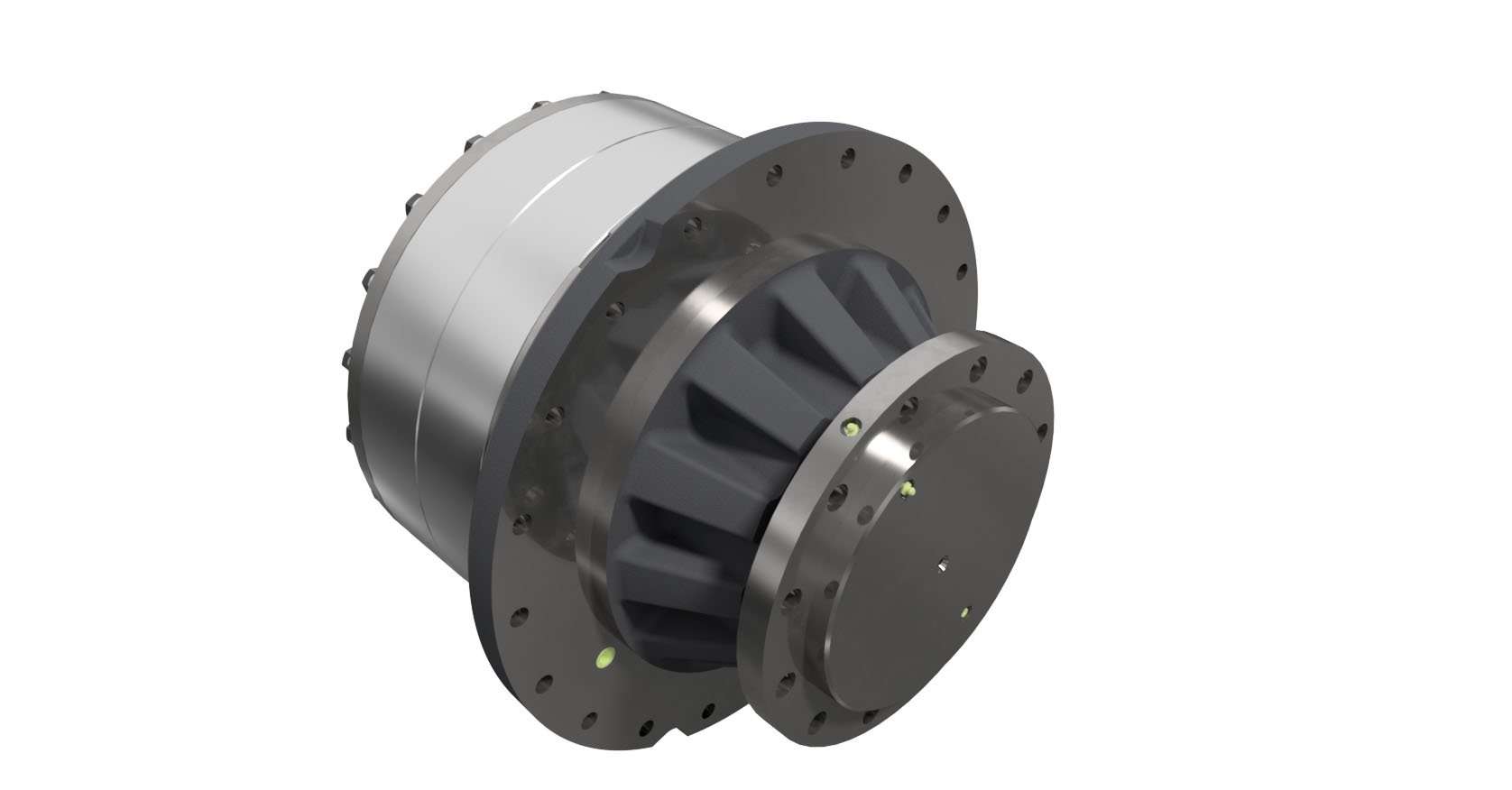

1400 Spindle Drive
Output Torque
1,400,000 In. Lbs.
158,178 Nm
Features & Benefits
- Patented Load-N-Lock™ shaft retention
- Gearbox Mounting – Flanged, Flangeless, Eccentric Pilot or Custom
- Output Spindle 17″ dia., 12 X .125″ – 12 UNF on 15″ Dia Bolt circle 12.75″ Dia. Pilot
- Input Mount SAE “C” (2&4 Bolt), SAE “D” (4 Bolt) and SAE “E” (4 Bolt)
| Maximum Intermittent Output Torque | 1,400,000 In. Lbs. / 158,178 Nm. |
| Continuous Output Torque | 700,000 In. Lbs. / 79,089 Nm. |
| Maximum Input Speed | 4,000 RPM |
| Standard Ratios | 26,41, 104, 114, 148, 155, 163, 166, 178, 201, 227, 232, 243, 260, 314 |
