131 Spindle Drive
Output Torque
130,000 In. Lbs.
14,688 Nm
Features & Benefits
> Exclusively Available with Load-N-Lock™ Shaft Retention
> Manufactured with 132L Heavy-Duty Shaft Assembly
> Gearbox Mounting – Flanged or Custom

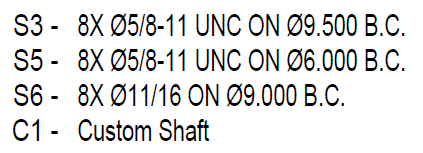

> Output Shaft – 8X 5/8-11 UNC on 9.50” B.C., 8X 5/8-11 UNC on 6.00” B.C., 8X 11/16” Thru on 9.00” B.C. or Custom
> Input Mount SAE “A” (2 & Modified 4 bolt), SAE “B” (2 Bolt, 4 Bolt), SAE “C” (2 & 4 Bolt) and SAE “D” (4 Bolt
Maximum Intermittent Output Torque | 130,000 In. Lbs. / 14,688 Nm. |
Continuous Output Torque | 65,000 In. Lbs. / 7,344 Nm. |
Maximum Input Speed | 3,000 RPM |
Standard Ratios | 4, 6, 19, 26, 33, 36, 45 |
