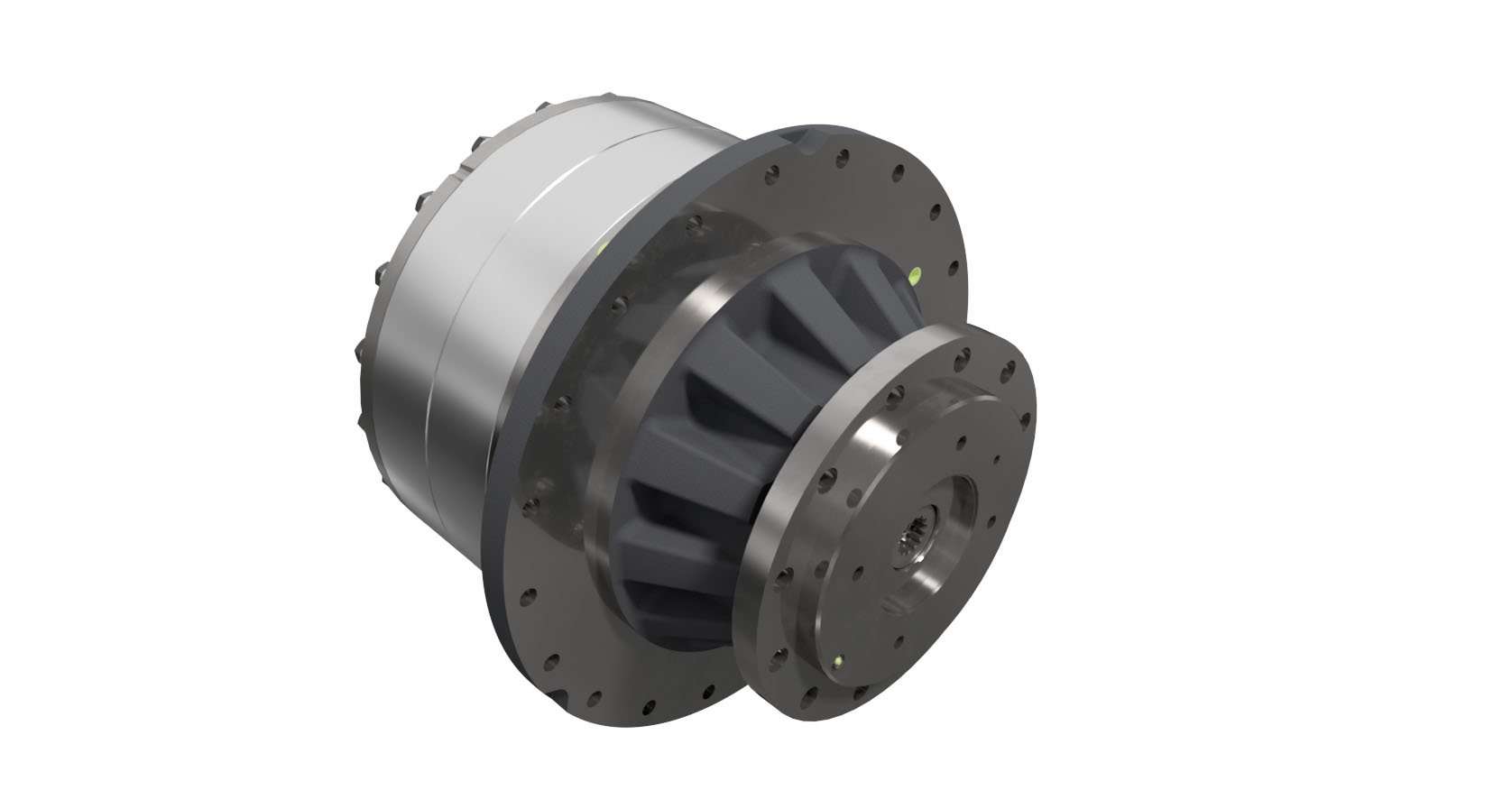

600 Wheel Drive
Output Torque
600,000 In. Lbs.
67,791 Nm
Features & Benefits
- Patented Load-N-Lock™ Shaft Retention
- Wheel Flange – Flanged, Flangeless or Custom
- Frame (Spindle) Mount – 17″ Dia. Spindle SAE “C” (2 and 4 Bolt), 17″ Dia. Spindle SAE “D” (4 Bolt) or Custom
SPECIFICATIONS
| Maximum Intermittent Output Torque | 600,000 In. Lbs. / 67,791 Nm. |
| Continuous Output Torque | 300,000 In. Lbs. / 33,895 Nm. |
| Maximum Input Speed | 4,000 RPM |
| Standard Ratios | 24, 38, 59, 69, 102, 109, 132, 149, 162, 203, 210, 236, 255, 299, 321, 332 |
