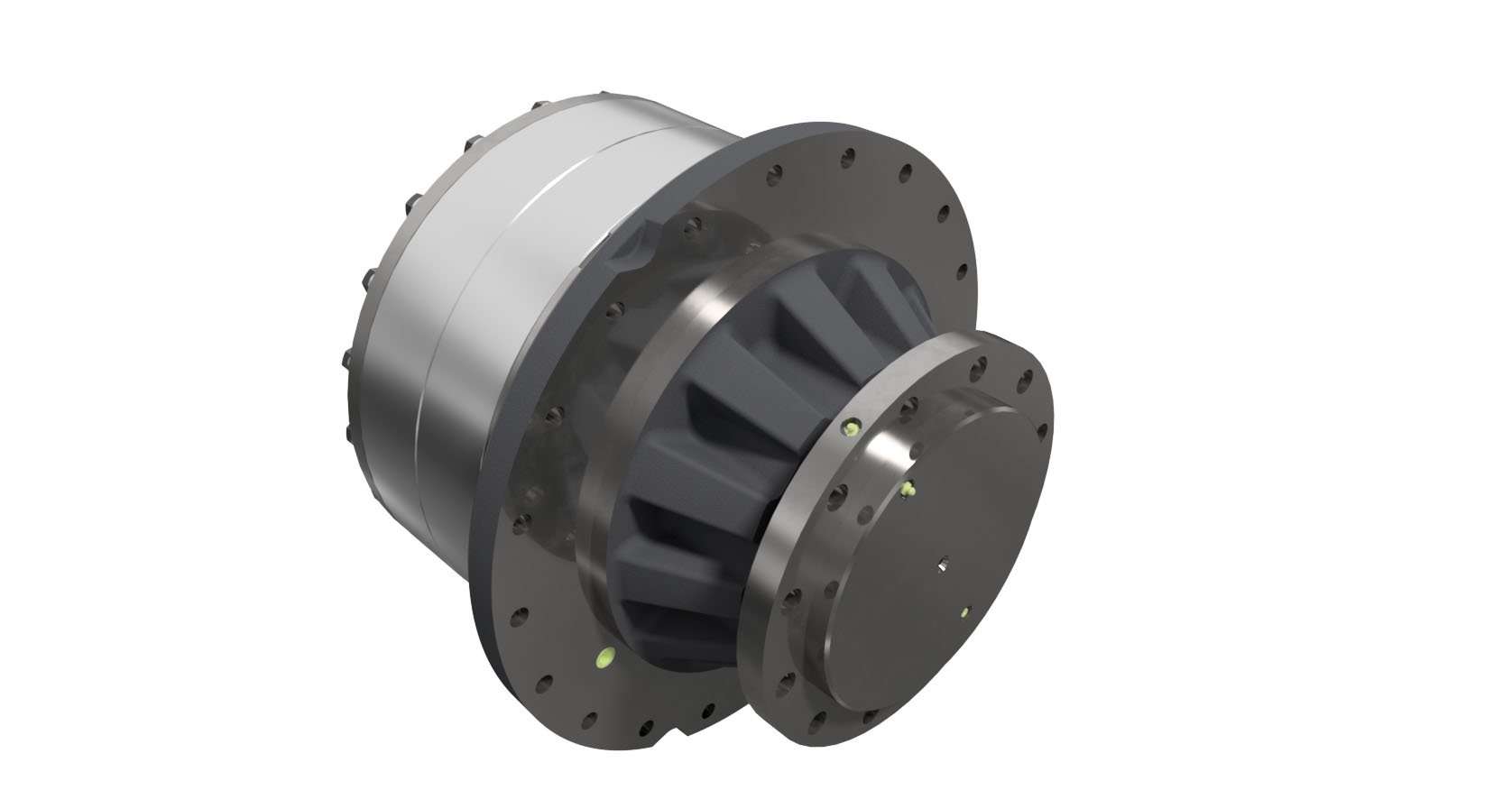

1000 Spindle Drive
Output Torque
1,000,000 In. Lbs.
112,984 Nm
Features & Benefits
- Patented Load-N-Lock™ shaft retention
- Gearbox Mounting – Flanged, Flangeless, Eccentric Pilot or Custom
- Output Spindle 17″ dia., 12 X .125″ – 12 UNF on 15″ Dia Bolt circle 12.75″ Dia. Pilot
- Input mount SAE “C” (2&4 Bolt), SAE “D” (4 Bolt) and SAE “E” (4 Bolt)
| Maximum Intermittent Output Torque | 1,000,000 In. Lbs. / 112,984 Nm. |
| Continuous Output Torque | 500,000 In. Lbs. / 56,492 Nm. |
| Maximum Input Speed | 4,000 RPM |
| Standard Ratios | 26,41, 76, 96, 104, 114, 148, 155, 163, 166, 178, 201, 227, 232, 243, 260, 298, 314, 326 |
