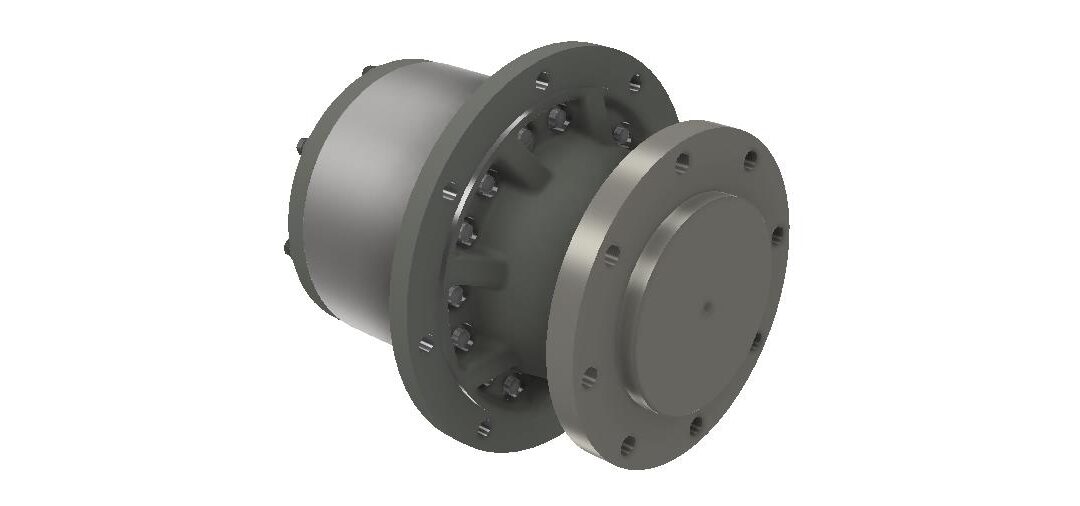

100 Spindle Drive
Output Torque
100,000 In. Lbs.
12,299 Nm
Features & Benefits
> Exclusively Available with Load-N-Lock™ Shaft Retention
> Manufactured with 132L Heavy-Duty Shaft Assembly
> Gearbox Mounting – Flanged or Custom
> Output Shaft – 8X ¾-16 UNF on 9.50” B.C., 8X .666-.654” on 8.50” B.C., 8X 5/8-11 UNC on 9.50” B.C., 8X 5/8-11 UNC on 7.25” B.C. or Custom
> Input Mount SAE “A” (2 & Modified 4 bolt), SAE “B” (2 Bolt, 4 Bolt), SAE “C” (2 & 4 Bolt) and SAE “D” (4 Bolt)
>Available with Metal Face Seal
Maximum Intermittent Output Torque | 100,000 In. Lbs. / 12,299 Nm. |
Continuous Output Torque | 50,000 In. Lbs. / 5,649 Nm. |
Maximum Input Speed | 3,000 RPM |
Standard Ratios | 4, 6, 19, 26, 33, 36, 45 |
