Wheel Drive Application Data Form

Click to Expand
Letters Correspond to Questions Below

Company

Address

Street Address Address Line 2 City State / Province / Region ZIP / Postal Code Country

Phone

Contact

First Last

Application

Machine Technical Data

Type of Equipment

Wheel Drive Function

Engine Power (HP)

Engine Power (RPM)

Hydraulic Continuous (PSI)

Hydraulic Continuous (GPM)

Hydraulic Maximum (PSI)

Hydraulic Maximum (GPM)

Weight Empty (TON)

Weight Loaded (TON)

Driven Wheels

Total Wheels

Hydraulic Motor Data

Displacement

Fixed

Variable

Type

Manufacturer

Maximum Displacement (in³/rev)

Motor Mount

Pilot(in)

Spline Data

Wheel and Gearbox Data

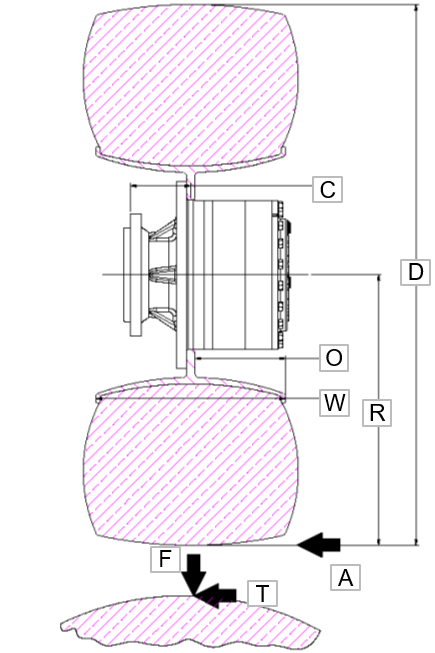

D. Wheel Diameter (in)

R. Wheel Radius Loaded (in)

W. Rim Width (in)

O. Rim Mounting Pad Distance

C. Wheel Center to Gearbox Mount

A. Axial Force (lbf)

T. Tractive Force

R. Radial Load

Maximum Gradeability (%)

Maximum Tractive Effort (lbf)

Maximum Draw Bar Pull (lbf)

Maximum Vehicle Speed (mph)

Maximum Output Torque (in-lbs)

Maximum Output Speed (RPM)

Reduction Ratio (X:1)

Operating Range (°F)

Design Life Required (hrs)

Annual Requirements (Qty/yr)

Brake Data

Brake Torque Required (in-lbs)

Brake Release Pressure (PSI)

Duty Profile Load Spectrum

Conditions

Output Torque (in-lbs)

Speed (RPM)

Radial Load (lbs)

Time (%)

Add a row per condition
