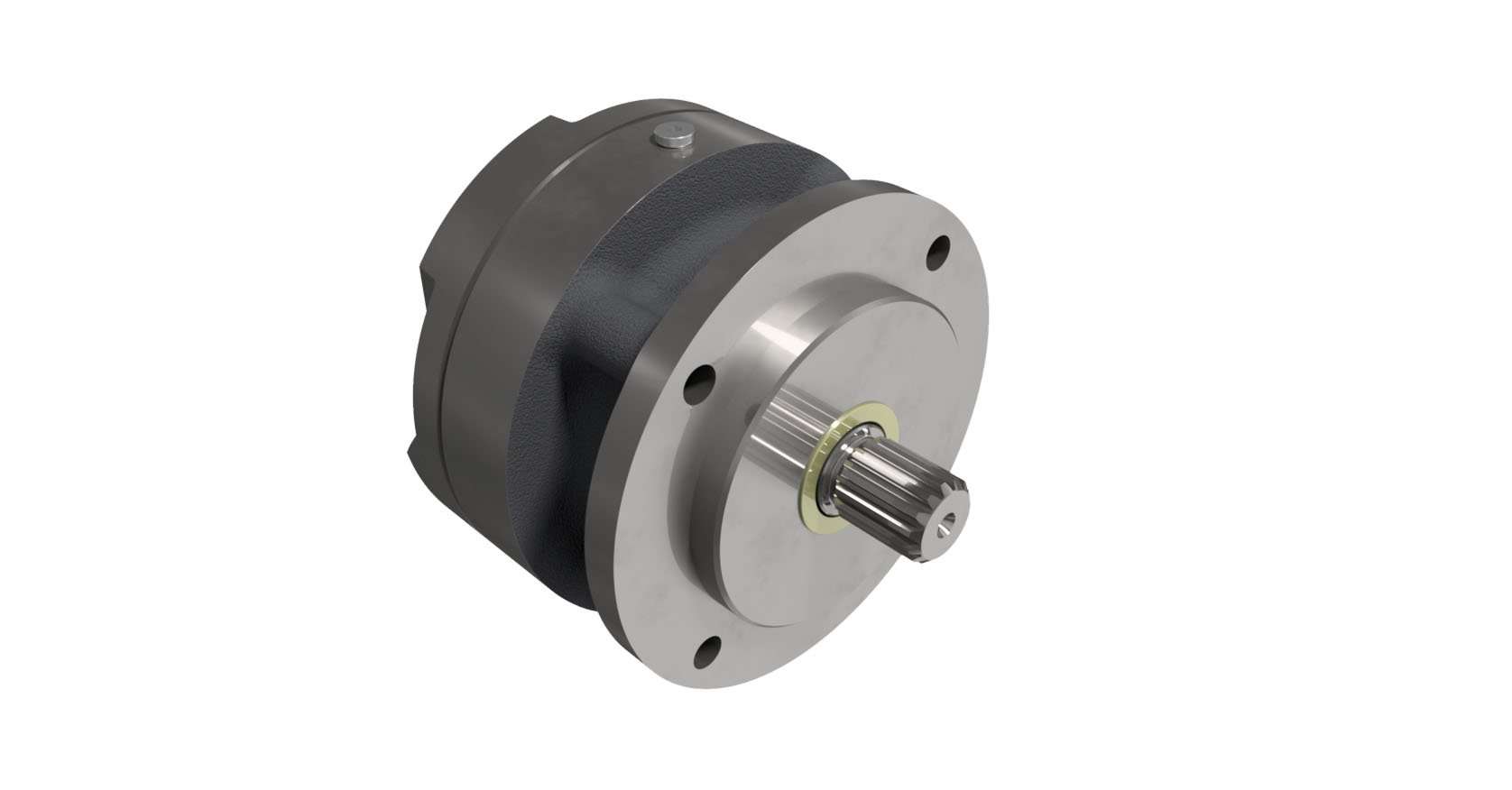

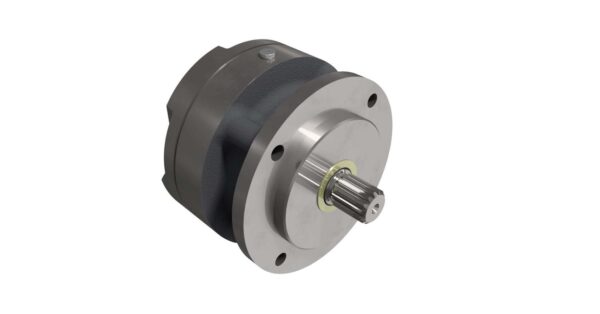

95C Brake
Holding Torque
3,500-12,000 In. Lbs.
395-1,355 Nm
Features & Benefits
FEATURES
- spring-applied / pressure-released brake
SPECIFICATIONS
| Maximum Release Pressure | 3,000 PSI |
| Maximum Speed | 3,900 RPM |
| Maximum Operating Temperature | 170° F / 76° C |
| Oil Volume To Release Brake | 0.5 Cu. In. |
| Approximate Weight | 42 Lbs. / 19 Kg. |
| Holding Torque | 3,500-12,000 In. Lbs. / 395-1,355 Nm |
